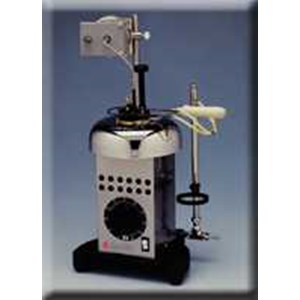

FLASH POINT CLOSED CUP TESTER BY PENSKY MARTENS

Test Method For flash point determinations of fuels, lubricating oils, liquids containing suspended solids and liquids that tend to form a surface film during testing. Features and Benefits • Conforms to ASTM D93 and related specifications • Choice of electric or gas heating K16200 Pensky-Martens Closed Cup Flash Tester Determines flash points of a wide range of products by a closed cup method with two option speed stirring of the sample. Extensively used in shipping and safety regulations for detection of contamination by volatile and flammable materials in fuel oils and lubricating oils, and for characterization of hazardous waste samples. Smooth operating cover mechanism slides shutter open and applies test flame at the turn of a knob. Cover fits over brass test cup and includes pilot flame, test flame reference bead, built-in stirrer and plated brass thermometer ferrule. Electrically heated model is equipped with a 750W nickel-chromium heater with stepless variable control for accurate, repeatable temperature rate of rise settings per specifications. Heater unit is enclosed in a stainless steel housing with cooling vents. Includes line cord receptacle and switch for accessory slow speed stirrer. Gas heated model has a built-in nickel plated brass natural gas burner, or can be supplied with an artificial gas burner or liquid propane burner (specify when ordering). Both models are mounted on a sturdy cast iron base. Specifications : Conforms to: ASTM D93; AASHTO T73-811; IP 34; ISO 2719; DIN 51758; FTM 791-1102; NF M 07-019 Electrical Requirements : 220-240V 50-60Hz, Single Phase, 3.4A Included Accessories : Brass Test Cup with Handle Thermometer Holder Dimensions : lxwxh,in.(cm) 9.5x8x22.5 (24x20x57) with optional stirrer motor installed Net Weight: K16000: 21 lbs (9.5kg) K16200/K16270: 24 lbs (10.9kg) Optional : - ASTM Thermometer 9C - ASTM Thermometer 10C - Cover assembly - Brass Test Cup
